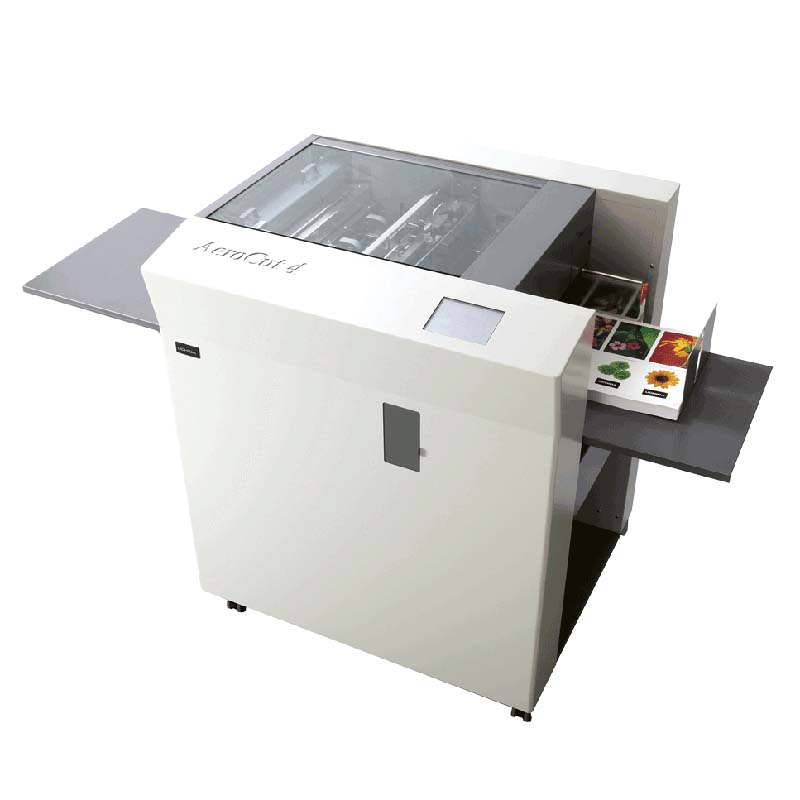

Uchida Aerocut One

Slitter/Cutter/Creaser
  • Self-sharpening cross cut knife
  • Matrix creasing with adjustable depth
  • Perforation unit with twin perf. wheels as an option
  • Reg mark reader to eliminate print wandering
  • Feeds stocks up to 400gsm in weight

Description

Model Info

Specs

Basic Functions
Slit, Cross cut, Crease
In-feed paper size
210(W)x210(L) to 370(W)x520(L)mm
Minimum finished size
55(W)x45(L)mm
Paper weight
120 to 400gsm *Depending on paper quality
Operation
4″ Touch Screen
Job memories
263 preset jobs & 150 customized job memories. (100 MANU SET + 50 FLEX MODE)
Feeding mechanism
Upper belt tri-suction suction feed (Patented)
Side blower
Skew adjustment
Side aligner
Double feed detection
Cut mark registration
Feed tray stacking capacity 100mm
Speed
8.8 sheets / min. : SRA3 21up business card
11 sheets / min. : SRA3 8up post card
12.2 sheets / min. : SRA3 4up greeting card
15.4 sheets / min. : A4 2 cuts & 1 crease
