Koenig & Bauer C32 SG – C56 SG

Web Offset – Commercial
  • Ideal for advertising material and supplements with high volumes and/or numbers of pages
  • High output of copies and extremely variable production
  • Highly automated for maximum productivity

Product Info

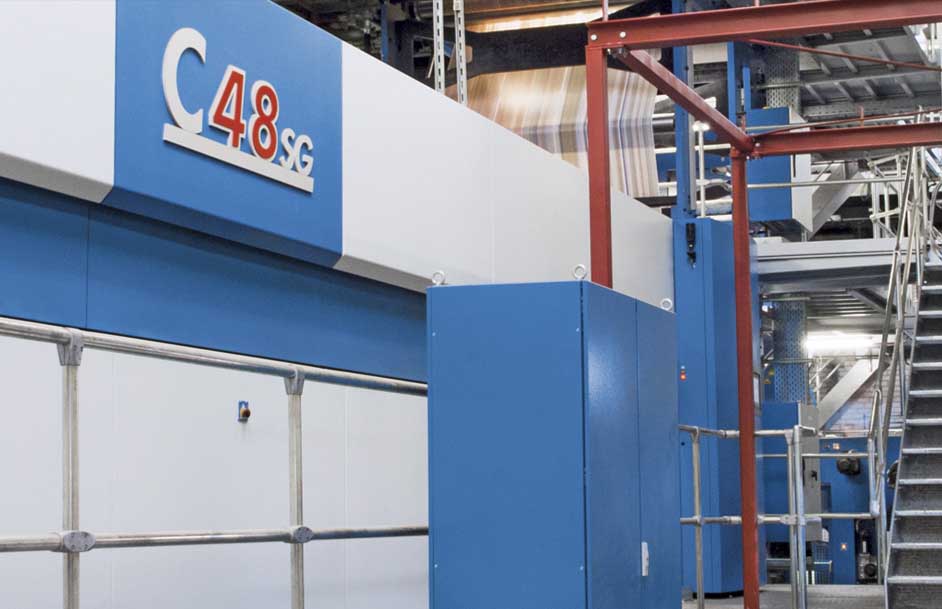

Expand your portfolio with price-sensitive printed products such as advertising material and supplements with high volumes and/or numbers of pages, as well as short delivery times. The C32 SG, C48 SG and C56 SG web offset presses stand for maximum productivity in short-grain printing. Compared with so-called long-grain systems, their output is one third higher for the same web speed. The C48 SG and C56 SG are the latest generation of rotary presses in terms of automation, workflow, operator ergonomics and frequency of maintenance. Their automatic plate change in approx. two minutes and the fully automatic folder changeover contribute to their enormous net production performance. The automated RollerTronic roller lock, which is only offered by Koenig & Bauer, supports high print quality and ease of maintenance. Besides the automatic presetting function using EasyTronic, LogoTronic allows order management and JDF process integration.



Rapid production in short grain format

Cut your set-up times and downtimes in the C 32 – C 80 with the fully automatic plate change. This has proved its worth thanks to a high degree of reliability and low maintenance costs. The RollerTronic automatic roller lock is an innovative contribution towards ease of operation, reduction of maintenance and consistency of quality.



The flexible superstructure allows you to enjoy competitive advantages through its flexibility, e.g. cutting ribbons of different widths from one web. The turner bars are supported in cantilever fashion on one side, thus allowing unimpeded access and fast paper infeed. The innovative belt tensioning system of the modular P5 and V5 folders leads to exact folding results. Maximum productivity is achieved with the cutter technology.



Integrated automation

Use the efficient paper logistics of Koenig & Bauer. The Patras reel loading system in conjunction with the automatic Pastomat reel stands guarantee you a smooth production process.



The operator-oriented ErgoTronic control console, the EasyTronic automatic press presetting system and the LogoTronic production management system are components in an integrated automation concept. With intelligent control technology at aggregate level and easy-to-understand operating masks, you will soon have the control console of the commercial web press under control in all phases of production. LogoTronic allows integrated networking solutions.

Features

المواصفات

Standard
Optional
Max. production speed
130.000 cph
Cylinder revolutions
65,000 rph
Cylinder circumference
870 – 890 mm
Web width
2.060 – 2.280 mm
CleanTronic washing systems
Yes
Automatic roller bearings RollerTronic
Yes
ErgoTronic
Yes
Quality measurement and control systems
Yes
Semi automatic plate change
Yes
Fully Automatic Plate Change
Yes
Patras A
Yes
